Vinyl Flex Glass - Grade A

Tightly Braided Fiberglass to Withstand Mechanical Stress

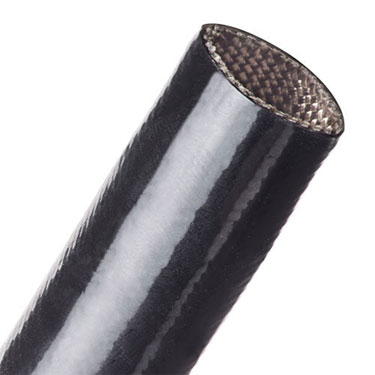

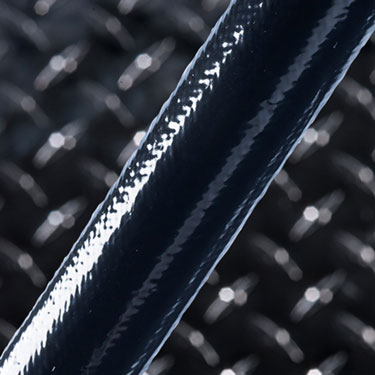

Vinyl Flex Glass (VG) sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a firmly bonded plasticized polyvinylchloride film. This durable sleeving will withstand mechanical stress and holds it dielectric strength on all bends.

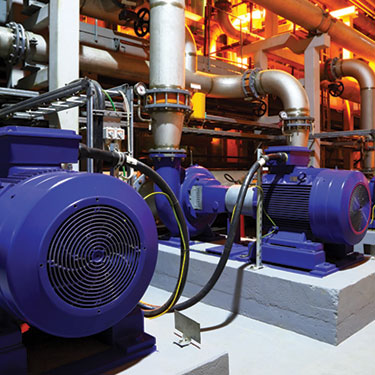

Vinyl Flex Glass is used for supplementary insulation on transformer, motor, generator, and resistor leads. Also other applications include television, radio, and other electric circuits where it can be pushed back to permit soldering. Highly resistant to acids and solvents, and will withstand tough assembly handling.

The Vinyl compound is designed for continuous operation at 130°C temperatures, while providing excellent abrasion and cut-through resistance.

DOWNLOAD VINYL FLEX GLASS SPECIFICATIONS PDF

Certifications:

Logo rohs Vw 1 logo

Product Sizes

Size
 		 Part Number Grade Bulk Spool Shop Spool Price and Availability
24 0.51mm VGAG.24 A 500 250

 PRICE AND AVAILABILITY ON APPLICATION

CONTACT US
22 0.64mm VGAG.22 A 500 250
20 0.81mm VGAG.20 A 500 250
18 1.02mm VGAG.18 A 500 250
17 1.15mm VGAG.17 A 500 250
16 1.29mm VGAG.16 A 500 250
15 1.45mm VGAG.15 A 500 250
14 1.63mm VGAG.14 A 500 250
13 1.83mm VGAG.13 A 250 100
12 2.05mm VGAG.12 A 250 100
11 2.31mm VGAG.11 A 250 100
10 2.59mm VGAG.10 A 250 100
9 2.91mm VGAG.09 A 250 100
8 3.26mm VGAG.08 A 250 100
7 3.67mm VGAG.07 A 250 100
6 4.12mm VGAG.06 A 250 100
5 4.62mm VGAG.05 A 250 100
4 5.19mm VGAG.04 A 250 100
3 5.83mm VGAG.03 A 250 100
2 6.54mm VGAG.02 A 250 100
1 7.35mm VGAG.01 A 100 50
0 8.25mm VGAG.00 A 100 50
3/8" 9.53mm VGA0.38 A 100 50
7/16" 11.10mm VGA0.44 A 100 50
1/2" 12.70mm VGA0.50 A 100 50
5/8" 15.88mm VGA0.63 A 100 50
3/4" 19.00mm VGA0.75 A 100 50
7/8" 22.20mm VGA0.88 A 100 50
1" 25.40mm VGA1.00 A 100 50
