F6 Woven Wrap FR
Self-Closing Flame Retardant Split Wrap Woven Sleeving

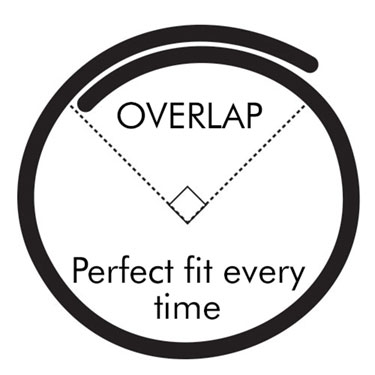

F6® Woven Wrap FR (F6V) is a VW-1 rated version of our industry‑leading F6® Woven Wrap, enhanced with a flame inhibitor for added safety in demanding environments. It retains all the key benefits of the original F6® design, including an easy wrap‑around installation and generous overlap for complete protection of critical electronic, communication, and power systems.

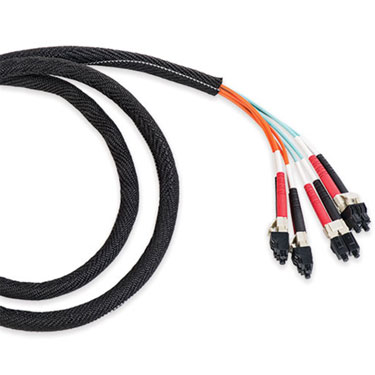

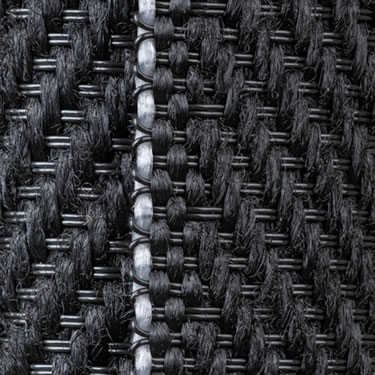

The advanced woven construction delivers exceptional flexibility and full coverage across complex harness assemblies. A unique combination of monofilament and multifilament polyester fibers creates a sleeving with built‑in memory, allowing it to self‑close securely and snap back into place when opened.
With its flame‑retardant performance, effortless installation, and reliable full‑coverage protection, F6® Woven Wrap FR is the ideal choice for commercial, industrial, and aerospace applications.
Features
- High Coverage, Self Wrapping Design
- Melt Temp 482F
- Complies to HL1 & HL2 according to the railway standard DIN EN 455452
- Passes Smoke Density Test ASTM E-662
- Passes Surface Flammability Test ASTM E-162
- Passes Smoke Toxciity Test SMP 800-C
|
Product Sizes |
|||||||
|
Nominal Size |
Part Number |
Wall Max |
Shop Spool |
Bulk Spool |
Extra Large Spool |
Lbs Per Hundred Feet |
Price and Availability |
|
3/16" |
F6V0.19TB |
0.027" |
100' |
500' |
3,000' |
0.8 |
|
|
3/8" |
F6V0.38TB |
0.027" |
100' |
250' |
2,000' |
1.2 |
|
|
1/2" |
F6V0.50TB |
0.027" |
75' |
200' |
1,500' |
1.6 |
|
|
3/4" |
F6V0.75TB |
0.027" |
50' |
150' |
1,000' |
2.5 |
|
|
1" |
F6V1.00TB |
0.027" |
50' |
100' |
460' |
3.2 |
|
|
1 1/4" |
F6V1.25TB |
0.027" |
25' |
75' |
330' |
3.7 |
|
|
1 1/2" |
F6V1.50TB |
0.027" |
25' |
50' |
260' |
4.8 |
|
