Acrylic Flex Glass - Grade C

Acrylic Coated Tightly Braided Fiberglass Sleeving

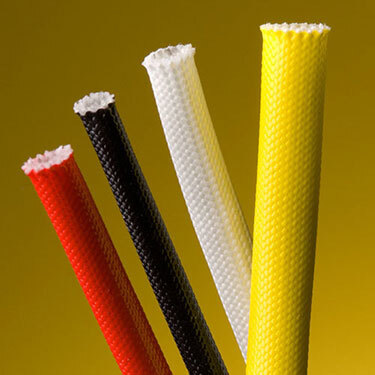

ACRYLIC FLEX GLASS (AG) sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it’s dielectric strength on all bends.

Acrylic Flex Glass is used in applications such as relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.

AG sleeving is recommended for thermal requirements from -13°F to 311°F ranges.

DOWNLOAD ACRYLIC FLEX GLASS SPECIFICATIONS PDF

Certifications:

Logo rohs Logo ul Prop65 clean

Product Sizes

Size Part Number Grade Bulk Spool Shop Spool Price and Availability
24 awg 0.51mm AGCG.24 C 500' 250' PRICE AND AVAILABILITY ON APPLICATION

CONTACT US
22 awg 0.64mm AGCG.22 C 500' 250'
20 awg 0.81mm AGCG.20 C 500' 250'
18 awg 1.02mm AGCG.18 C 500' 250'
16 awg 1.29mm AGCG.16 C 500' 250'
14 awg 1.63mm AGCG.14 C 500' 250'
12 awg 2.05mm AGCG.12 C 250' 100'
11 awg 2.31mm AGCG.11 C 250' 100'
10 awg 2.59mm AGCG.10 C 250' 100'
9 awg 2.91mm AGCG.09 C 250' 100'
8 awg 3.26mm AGCG.08 C 250' 100'
7 awg 3.67mm AGCG.07 C 250' 100'
6 awg 4.12mm AGCG.06 C 250' 100'
5 awg 4.62mm AGCG.05 C 250' 100'
4 awg 5.19mm AGCG.04 C 250' 100'
3 awg 5.83mm AGCG.03 C 250' 100'
2 awg 6.54mm AGCG.02 C 250' 100'
1 awg 7.35mm AGCG.01 C 100' 50'
0 awg 8.25mm AGCG.00 C 100' 50'
3/8" 9.53mm AGC0.38 C 100' 50'
7/16" 11.10mm AGC0.44 C 100' 50'
1/2" 12.70mm AGC0.50 C 100' 50'
5/8" 15.88mm AGC0.63 C 100' 50'
3/4" 19.00mm AGC0.75 C 100' 50'
7/8" 22.20mm AGC0.88 C 100' 50'
1" 25.40mm AGC1.00 C 100' 50'
