FR Silicone Flex Glass - Grade C
Flame Retardant Extremely Flexible Braided Fiberglass Sleeve

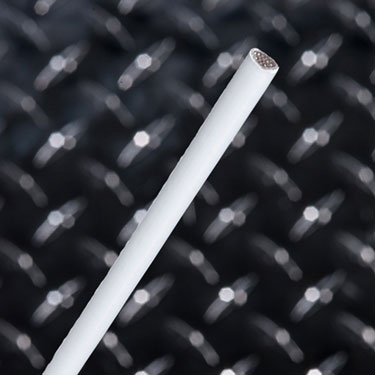

Flame Retardant Silicone Flex Glass sleeving is an extremely flexible braided fiberglass sleeve coated with a flame retardant elastometric silicone rubber sheath.The unique self-fitting construction allows SF sleeving to expand slightly for easy installation, and provides a snug fit for minimum movement and reduced internal abrasion.

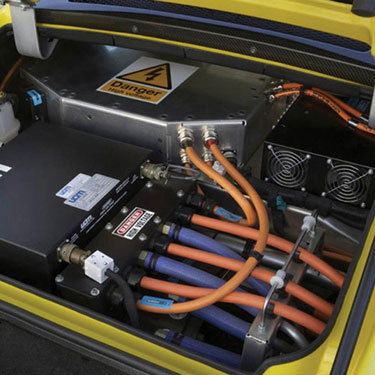

SF sleeving is rated to 392°F. (Class H), is abrasion resistant, and maintains it’s flexibility in low temperature environments. It is available in a very wide range of sizes, and is ideal for use in appliance assemblies, wire harnesses, transformer leads, power supplies, motor coil and heater leads.
DOWNLOAD FR SILICONE FLEX GLASS SPECIFICATIONS PDF
Certifications:
Product Sizes
|
Size
|
Part Number | Grade | Bulk Spool | Shop Spool | Price and Availability | |
| 3/8" | 9.53mm | SFC0.38 | C | 100' | 50' | PRICE AND AVAILABILITY ON APPLICATION CONTACT US |
| 7/16" | 11.10mm | SFC0.44 | C | 100' | 50' | |
| 1/2" | 12.70mm | SFC0.50 | C | 100' | 50' | |
| 5/8" | 15.88mm | SFC0.63 | C | 100' | 50' | |
| 3/4" | 19.00mm | SFC0.75 | C | 100' | 50' | |
| 7/8" | 22.20mm | SFC0.88 | C | 100' | 50' | |
| 1" | 25.40mm | SFC1.00 | C | 100' | 50' | |
