Heat Shrink Tubing 4:1 Dual Wall adhesive
Shrinkflex Dual Wall 4:1 Adhesive

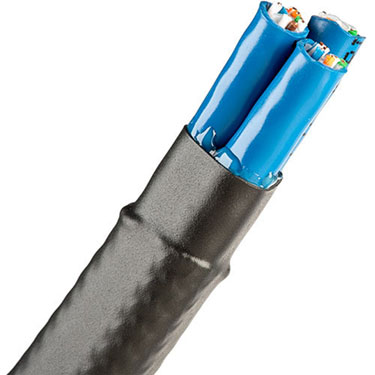

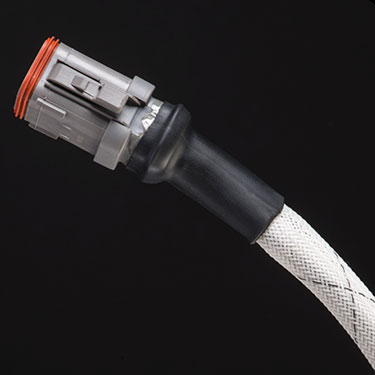

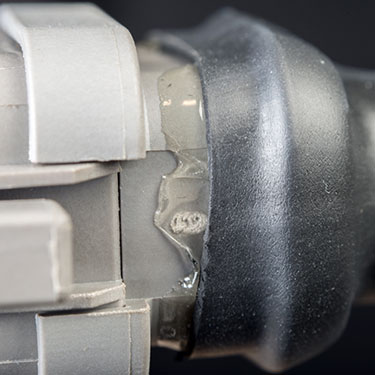

SHRINKFLEX ADHESIVE 4:1 POLYLEFIN HEAT SHRINK tubing is the ideal for producing strong, weather tight seals on any heat shrink installation. During the application of heat from a heat gun or other heat source, the inner adhesive wall melts and flows, creating an adhesion layer to ensure a snug fit to your harness or connector.
4:1 SHRINKFLEX Adhesive is available in 1.2m sticks.
Features
- Shrink Temp 90c
- Flame Retardant
- Excellent Electrical Properties
- Protects from Fluids, Moisture & Corrosion
- Easily Installs Over Connectors & Splices
|
Product Sizes |
|||||||
|
Size |
Part Number |
Unshrunk Diameter |
Shrunk Diameter |
Bulk Box Put Up/4' Pcs. |
Shop Box Put Up/4' Pcs. |
Lbs / 10 Pcs. |
Price and Availability |
|
3/16" |
H4A0.19 |
4.0mm |
1.0mm |
250 |
25 |
0.3 |
PRICE AND AVAILIBILTY ON APPLICATION CONTACT US |
|
5/16" |
H4A0.31 |
8.0mm |
2.0mm |
250 |
25 |
0.44 |
|
|
1/2" |
H4A0.50 |
12.0mm |
3.0mm |
200 |
25 |
0.9 |
|
|
3/4" |
H4A0.75 |
16.0mm |
4.0mm |
80 |
25 |
1.5 |
|
|
1" |
H4A1.00 |
24.0mm |
6.0mm |
50 |
25 |
2.6 |
|
|
1 1/4" |
H4A1.25 |
32.0mm |
8.0mm |
25 |
5 |
3.5 |
|
|
2" |
H4A2.00 |
52.0mm |
13.0mm |
15 |
5 |
8 |
|
