Acrylic Flex Glass - Grade A

Acrylic Coated Tightly Braided Fiberglass Sleeving

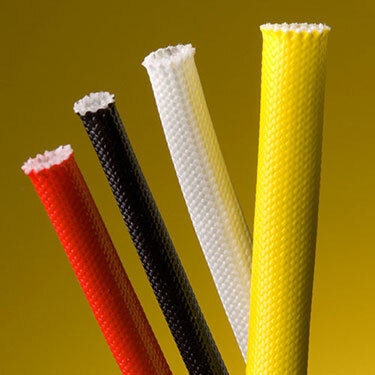

ACRYLIC FLEX GLASS (AG) sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it’s dielectric strength on all bends.

Acrylic Flex Glass is used in applications such as relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.

AG sleeving is recommended for thermal requirements from -13°F to 311°F ranges.

DOWNLOAD ACRYLIC FLEX GLASS SPECIFICATIONS PDF

Certifications:

Logo rohs Logo ul Prop65 clean

Product Sizes

Size Part Number Grade Bulk Spool Shop Spool Price and Availability
24 awg 0.51mm AGAG.24 A 500' 250'

PRICE AND AVAILABILITY ON APPLICATION

CONTACT US
22 awg 0.64mm AGAG.22 A 500' 250'
20 awg 0.81mm AGAG.20 A 500' 250'
18 awg 1.02mm AGAG.18 A 500' 250'
16 awg 1.29mm AGAG.16 A 500' 250'
14 awg 1.63mm AGAG.14 A 500' 250'
12 awg 2.05mm AGAG.12 A 250' 100'
11 awg 2.31mm AGAG.11 A 250' 100'
10 awg 2.59mm AGAG.10 A 250' 100'
9 awg 2.91mm AGAG.09 A 250' 100'
8 awg 3.26mm AGAG.08 A 250' 100'
7 awg 3.67mm AGAG.07 A 250' 100'
6 awg 4.12mm AGAG.06 A 250' 100'
5 awg 4.62mm AGAG.05 A 250' 100'
4 awg 5.19mm AGAG.04 A 250' 100'
3 awg 5.83mm AGAG.03 A 250' 100'
2 awg 6.54mm AGAG.02 A 250' 100'
1 awg 7.35mm AGAG.01 A 100' 50'
0 awg 8.25mm AGAG.00 A 100' 50'
3/8" 9.53mm AGA0.38 A 100' 50'
7/16" 11.10mm AGA0.44 A 100' 50'
1/2" 12.70mm AGA0.50 A 100' 50'
5/8" 15.88mm AGA0.63 A 100' 50'
3/4" 19.00mm AGA0.75 A 100' 50'
7/8" 22.20mm AGA0.88 A 100' 50'
1" 25.40mm AGA1.00 A 100' 50'
