Flexo Tight Weave FR
Tightly Woven Flame Retardant 9 mil Braided Sleeving

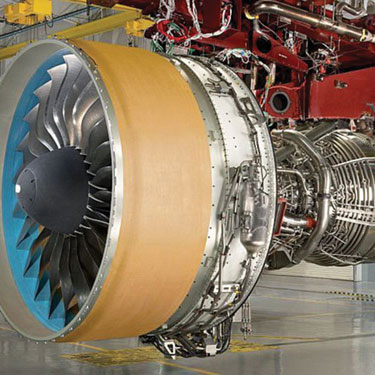

Flame Retardant Flexo® Tight Weave sleeving was developed in collaboration with aircraft manufacturers as a high-performance replacement for the Standard Grade FR. Constructed from tightly braided 9 mil flame-retardant monofilament, this design provides denser coverage over wire harnesses, significantly enhancing abrasion resistance—a crucial requirement in aerospace applications.

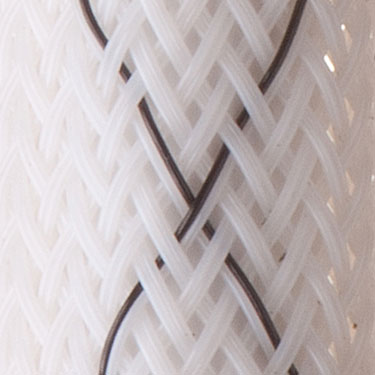

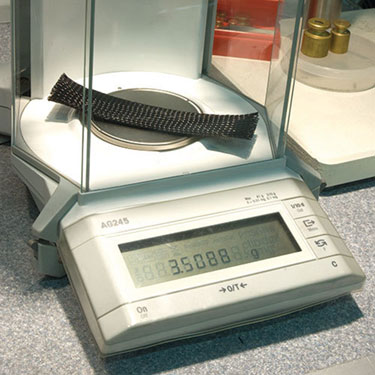

The use of 9 mil monofilament (instead of 10 mil) reduces overall weight while maintaining the superior protection achieved by the tight braid pattern. Flexo® Tight Weave sleeving is available in a range of sizes to fit wire harnesses up to 3 inches in diameter, meeting the industry’s rigorous performance and weight standards.
Features
- VW-1, Mil-202, FAR Approved
- Resists Gasoline and Engine Chemicals
- Temperature range 94F to 257F
- Melt Temp. 482F
|
Product Sizes |
|||||||
|
Nominal Size |
Part Number |
Min Expansion |
Max Expansion |
Shop Spool |
Bulk Spool |
Lbs Per Hundred Feet |
Price and Availability |
|
1/8" |
F9T0.13 |
1/16" |
7/32" |
225' |
1,000' |
0.27 |
|
|
1/4" |
F9T0.25 |
9/64" |
3/8" |
200' |
1,000' |
0.32 |
|
|
5/16" |
F9T0.31 |
3/16" |
3/8" |
125' |
500' |
0.48 |
|
|
1/2" |
F9T0.50 |
9/32" |
5/8" |
100' |
500' |
0.6 |
|
|
9/16" |
F9T0.56 |
3/8" |
5/8" |
100' |
500' |
0.63 |
|
|
3/4" |
F9T0.75 |
1/2" |
1" |
75' |
500' |
0.97 |
|
|
1" |
F9T1.00 |
5/8" |
1 3/8" |
65' |
250' |
1.26 |
|
|
1 1/4" |
F9T1.25 |
3/4" |
1 5/8" |
50' |
250' |
2.03 |
|
|
1 1/2" |
F9T1.50 |
1" |
1 7/8" |
40' |
250' |
2.32 |
|
|
1 3/4" |
F9T1.75 |
1 5/16" |
2 3/8" |
30' |
250' |
2.61 |
|
|
2" |
F9T2.00 |
1 7/16" |
2 1/2" |
50' |
200' |
3.02 |
|
|
2 1/4" |
F9T2.25 |
1 3/4" |
2 5/8" |
50' |
200' |
3.04 |
|
|
2 1/2" |
F9T2.50 |
1 7/8" |
3" |
50' |
200' |
3.69 |
|
