Heatshrink Tubing 2:1 Dual Wall Adhesive
Shrinkflex Dual Wall 2:1 Adhesive

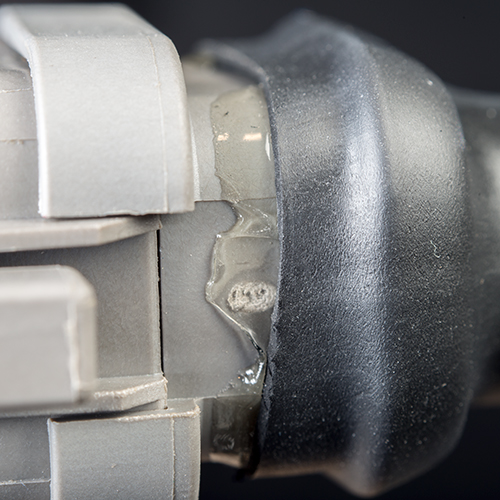

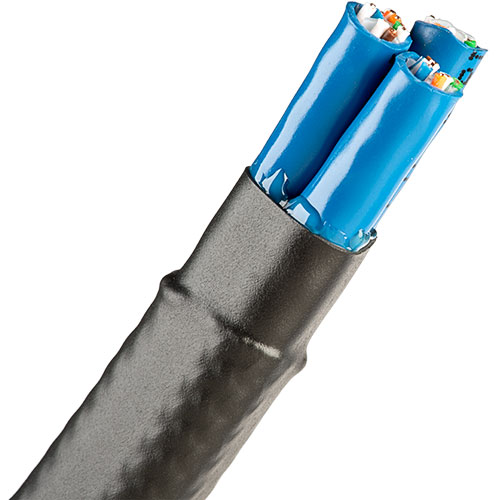

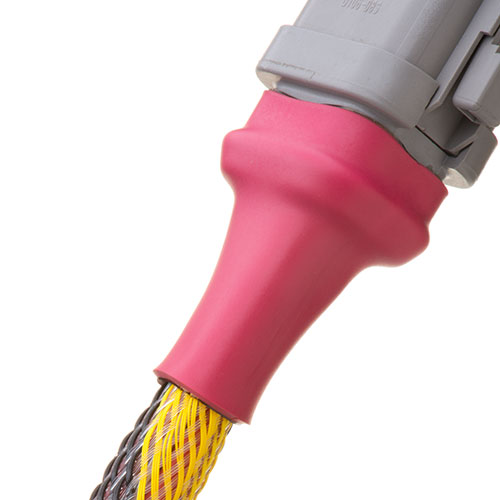

SHRINKFLEX ADHESIVE 3:1 POLYLEFIN HEAT SHRINK tubing is the ideal for producing strong, weather tight seals on any heat shrink installation. During the application of heat from a heat gun or other heat source, the inner adhesive wall melts and flows, creating an adhesion layer to ensure a snug fit to your harness or connector.
2:1 SHRINKFLEX Adhesive is available in 1.2m sticks.
Features
- Shrink Temp 90c
- Flame Retardant
- Excellent Electrical Properties
- Protects from Fluids, Moisture & Corrosion
- Easily Installs Over Connectors & Splices
|
Product Sizes |
|||||||
|
Size |
Part Number |
Unshrunk Diameter |
Shrunk Diameter |
Bulk Box Put Up/4' Pcs. |
Shop Box Put Up/4' Pcs. |
Lbs / 10 Pcs. |
Price and Availability |
|
1/8" |
H2A0.13 |
3.2mm |
1.6mm |
250 |
25 |
0.17 |
PRICE AND AVAILIBILTY ON APPLICATION CONTACT US |
|
1/4" |
H2A0.25 |
6.4mm |
3.2mm |
250 |
25 |
0.32 |
|
|
3/8" |
H2A0.38 |
9.6mm |
4.8mm |
250 |
25 |
0.53 |
|
|
1/2" |
H2A0.50 |
12.7mm |
6.4mm |
200 |
25 |
0.65 |
|
|
3/4" |
H2A0.75 |
19.1mm |
9.6mm |
80 |
25 |
1.59 |
|
|
1" |
H2A1.00 |
25.4mm |
12.7mm |
50 |
25 |
1.63 |
|
|
1 1/2" |
H2A1.50 |
38.1mm |
19.1mm |
15 |
5 |
2.5 |
|
